Imaging System Calibration

Imaging system calibration is a crucial aspect of preclinical research using PET, SPECT, CT, and optical imaging systems. These imaging modalities provide non-invasive, high-resolution images of biological structures and processes, but the accuracy and reliability of the images are highly dependent on the performance of the imaging system. Calibration is the process of adjusting the imaging system to ensure that it produces accurate and reproducible images. Proper calibration of imaging systems is critical for ensuring accurate and reproducible results in preclinical research. It is also essential for ensuring the comparability of results across different imaging systems and for allowing researchers to validate their findings against established standards.

The calibration of imaging systems is crucial for achieving high-quality, accurate, and reproducible preclinical imaging data. Our company offers comprehensive preclinical imaging system calibration services to ensure that all of these parameters are optimized for your specific imaging system. Our team of experienced technicians will perform a thorough analysis of your imaging system and provide a detailed report with recommendations for any necessary adjustments. By choosing our calibration services, you can be confident that your preclinical imaging data will be of the highest quality, allowing you to make informed decisions and progress with your research with greater confidence.

Following are some of the parameters that should be calibrated for each preclinical imaging system.

Preclinical Imaging Systems Calibration

  • Decay correction: The first step in PET calibration is to correct for radioactive decay, which is a function of time. This is done by measuring a known amount of radioactivity in the scanner at the beginning and end of the scan and applying a decay correction factor to the data.
  • Energy resolution: Energy resolution measures the ability of the system to distinguish between gamma rays of different energies. The energy resolution is important for accurately determining the distribution of radioisotopes in the sample being imaged.

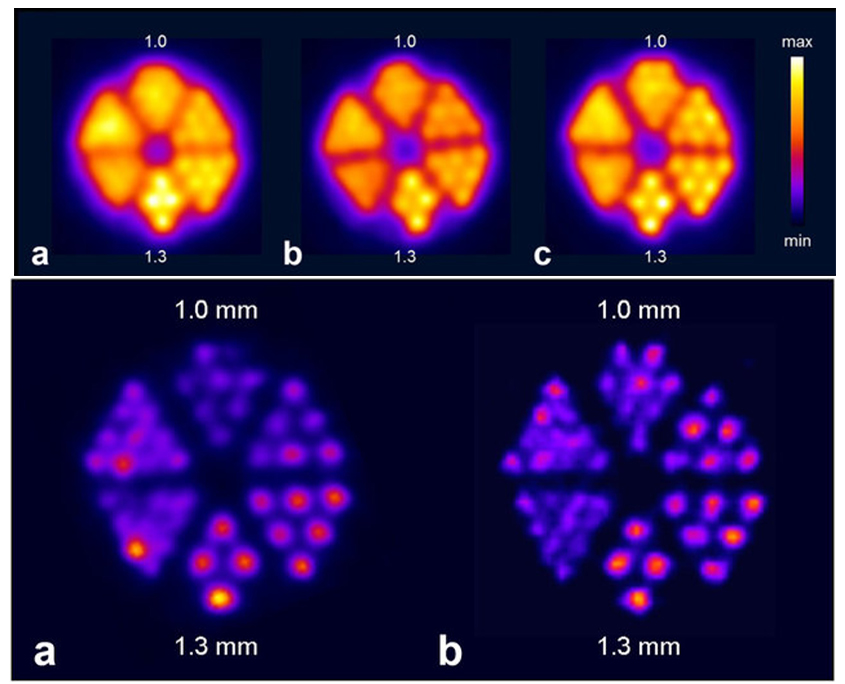

  • Spatial resolution: Spatial resolution measures the ability of the system to distinguish between two closely spaced sources of radioactivity. Spatial resolution is an important parameter for accurately localizing radioisotopes in the sample being imaged.
  • Sensitivity correction: PET detectors have non-uniform sensitivity across the field of view, which can result in image artifacts and inaccuracies. Sensitivity correction involves measuring the detector response to a uniform source of radioactivity and adjusting the data accordingly.
  • Attenuation correction: PET photons can be absorbed or scattered by the tissue they pass through, which can result in image artifacts and inaccuracies. Attenuation correction involves measuring the attenuation in the data and adjusting the data accordingly.
  • Dead time correction: Dead time is the period of time during which the system is unable to detect new events due to the aftereffects of a previous event. PET detectors can have limited counting rates, which can result in inaccurate data. Dead time correction involves measuring the detector’s dead time and adjusting the data accordingly. Correction is necessary to correct for the loss of counts due to dead time.
  • Scatter correction: Scatter fraction measures the fraction of detected counts that arise from the scattering of gamma rays within the object being imaged. Correction is necessary to produce accurate quantitative images.
  • Image reconstruction parameters: PET images are reconstructed from raw data using various algorithms, which can impact image quality and accuracy. The reconstruction parameters should be optimized and calibrated to produce the best possible images.
  • Normalization: PET images can be affected by non-uniform detector responses and sensitivity due to manufacturing differences. Normalization involves measuring the detector response to a uniform source of radiation and adjusting the data to account for these differences.
  • Quality control: PET systems require frequent quality control to ensure that the system is operating properly and producing accurate images. Quality control tests may include measuring the system’s sensitivity, resolution, and uniformity.
  • Energy calibration: SPECT detectors have a non-linear response to gamma-ray energy, which can result in inaccuracies in the image data. Energy calibration involves measuring the response of the detectors to a known source of gamma rays at different energies and creating a calibration curve to adjust the data.
  • Uniformity correction: SPECT detectors have non-uniform sensitivity across the field of view, which can result in image artifacts and inaccuracies. Uniformity correction involves measuring the detector response to a uniform source of gamma rays and adjusting the data accordingly. Uniformity correction is necessary to produce accurate quantitative images.
  • Collimator calibration: SPECT images are acquired using collimators, which can affect the spatial resolution and sensitivity of the system. Collimators are used to collimate the gamma rays emitted by the sample being imaged. The collimator is a critical component of the SPECT system, which controls the spatial resolution and sensitivity of the system. Collimator calibration involves measuring the response of the collimator to gamma rays at different angles and distances and adjusting the data accordingly.
  • Resolution recovery: SPECT images can be affected by resolution loss due to the collimator and detector response. Resolution recovery involves using iterative reconstruction algorithms to improve the spatial resolution of the images. Spatial resolution is an important parameter for accurately localizing radioisotopes in the sample being imaged.
  • System sensitivity calibration: SPECT detectors have a finite sensitivity that can vary across the field of view. System sensitivity calibration involves measuring the system response to a uniform source of radiation and adjusting the data accordingly. Sensitivity is an important parameter for optimizing image acquisition time and dose.
  • System linearity: System linearity measures the linearity of the system response over a range of activity concentrations. System linearity is an important parameter for accurate quantification of radioisotope distribution.
  • Scatter correction: SPECT photons can be scattered by the tissue they pass through, which can result in image artifacts and inaccuracies. Scatter correction involves measuring the scatter in the data and adjusting the data accordingly.
  • Attenuation correction: Attenuation correction is the process of correcting for the attenuation of gamma rays as they pass through the body. Attenuation correction is necessary to produce accurate quantitative images.
  • Geometry calibration: CT systems have multiple components that must be precisely aligned to produce accurate images. Geometric distortion occurs when the X-ray beam is not orthogonal to the detector, leading to distortions in the image. Geometry calibration involves measuring the alignment of the x-ray source, detector array, and patient support, and adjusting the system accordingly.
  • Hounsfield unit calibration: The CT image is based on the attenuation of x-rays through the tissue, which is expressed in Hounsfield units (HU). The calibration involves measuring the attenuation of a known material with a range of HU values and creating a calibration curve to adjust the data.
  • Noise reduction: Noise is an important parameter for optimizing image quality and dose. CT images can be affected by various types of noise, including electronic noise and photon noise. Calibration involves measuring the noise and artifacts in the system and adjusting the data processing and reconstruction parameters to reduce their impact.
  • The X-ray tube voltage and current calibration: CT images are acquired using x-rays, which must be calibrated to produce accurate images. The X-ray tube voltage and current should be calibrated to optimize the image quality and reduce the radiation dose.
  • Spatial resolution calibration: Spatial resolution measures the ability of the system to distinguish between two closely spaced objects. CT images are affected by spatial resolution, which can impact image quality and accuracy. Spatial resolution calibration involves measuring the system response to a known object with fine details and adjusting the system accordingly. Spatial resolution is an important parameter for accurately localizing structures in the sample being imaged.
  • Artifacts correction: CT images can be affected by various artifacts, including beam hardening, motion artifacts, and ring artifacts. Calibration involves identifying and correcting the sources of these artifacts to improve image quality and accuracy.
  • Image registration: CT images may need to be registered to other imaging modalities or to previous scans. Image registration involves aligning the images to a common coordinate system to enable quantitative analysis.
  • Dose calibration: CT scans involve ionizing radiation, which can be harmful to subjects. Dose calibration involves measuring the radiation dose delivered to the subject and adjusting the acquisition parameters to minimize the dose while maintaining image quality.
  • Beam hardening correction: Beam hardening occurs when the X-ray beam passing through the sample is preferentially absorbed by denser materials, leading to artifacts in the image. Beam hardening correction is necessary to produce accurate quantitative images.
  • Detector response correction: Detector response correction is the process of correcting for non-linearities in the response of the detectors to X-rays of different energies. Detector response correction is necessary to produce accurate quantitative images.
  • Low contrast detectability: Low contrast detectability measures the ability of the system to distinguish between objects with similar X-ray attenuation coefficients. Low contrast detectability is an important parameter for accurately identifying subtle changes in the sample being imaged.
  • Illumination correction: Optical imaging systems have non-uniform illumination across the field of view, which can result in image artifacts and inaccuracies. Illumination correction involves measuring the illumination pattern and adjusting the data accordingly.
  • Dark noise correction: Optical detectors can generate noise even in the absence of light, which can result in image artifacts and inaccuracies. Dark noise correction involves measuring the detector noise in the absence of light and subtracting it from the image data.
  • Spectral calibration: Optical imaging systems can capture different wavelengths of light, which must be accurately calibrated to produce accurate images. Spectral calibration involves measuring the spectral response of the system and creating a calibration curve to adjust the data.
  • Focal plane adjustment: Optical imaging systems have a focal plane that must be adjusted for each experiment. Focal plane adjustment involves measuring the focus of the system and adjusting the data accordingly.
  • Background subtraction: Optical images can be affected by background noise and fluorescence, which can result in image artifacts and inaccuracies. Background subtraction involves measuring the background signal and subtracting it from the image data. Background subtraction is necessary to produce accurate quantitative images.
  • Quantitative calibration: Optical imaging systems can be used to measure the concentration of fluorescent probes in tissue. Quantitative calibration involves measuring the fluorescence intensity of known concentrations of probes and creating a calibration curve to accurately measure the probe concentration in tissue.
  • Flat field correction: Flat field correction is the process of correcting for non-uniformities in the illumination of the sample. Flat field correction is necessary to produce accurate quantitative images.
  • Registration: Registration is the process of aligning multiple images of the same sample, taken at different times or with different imaging modalities. Registration is necessary for an accurate comparison of images.
  • Spatial resolution: Spatial resolution measures the ability of the system to distinguish between two closely spaced objects. Spatial resolution is an important parameter for accurately localizing structures in the sample being imaged.
  • Sensitivity: Sensitivity measures the ability of the system to detect photons. Sensitivity is an important parameter for optimizing image acquisition time and dose.
  • Dynamic range: Dynamic range measures the range of signal intensities that can be detected by the system. Dynamic range is an important parameter for accurately capturing the full range of signal intensities in the sample being imaged.
  • Linearity calibration: Optical images can be affected by non-linear detector responses, which can result in image artifacts and inaccuracies. Linearity calibration involves measuring the detector response to known fluorescence sources of different intensities and adjusting the data to account for any non-linearities.

WHAT CAN WE DO FOR YOU?

Our company provides professional imaging systems calibration services to ensure accurate and reliable results while minimizing radiation exposure. We specialize in calibrating various imaging systems, including preclinical PET, SPECT, CT, and optical imaging systems. Our team of experts uses state-of-the-art equipment and techniques to ensure that these imaging systems are accurately calibrated for optimal performance. We also offer customized calibration protocols to meet the specific requirements of different imaging systems and applications. We aim to ensure that imaging systems are accurately calibrated and safe for operators and patients.

To register your project with our company, please register your project through the “Contact Us” page on our website and fill out the required fields, including your name, email address, and project details.

We will review your submission and contact you as soon as possible to schedule a free virtual meeting with our specialists, who can provide guidance and support for your project.
